Description
- Metal casting, strong fire resistance, simple installation, and easy cleaning.
- Double air way deflector’s design obtains an even air stream.
- The air wheel made of high-strength Fiberglas plastic material are especially suitable for the application of heavy oily smoke.
- Quality motor works for 5,000 hours continuously without any defect.
- Control Remote Included.
- Magnetic Sensor.
| TECHNICAL SPECIFICATIONS | |
| Power Supply | 115V/1Ph/60Hz |
| Air Volume (m³) | 2,970 |
| Noise (dB) | 57 |
| Installation Height (m) | 2.3~3.0 |
| WiFi | No |
| SKU | FM1215N-2Y-S1 |
| DIMENSIONS | WEIGHT | ||||||||||||||||||||||||||||||||||||||||||
| UNIT | |||||||||||||||||||||||||||||||||||||||||||

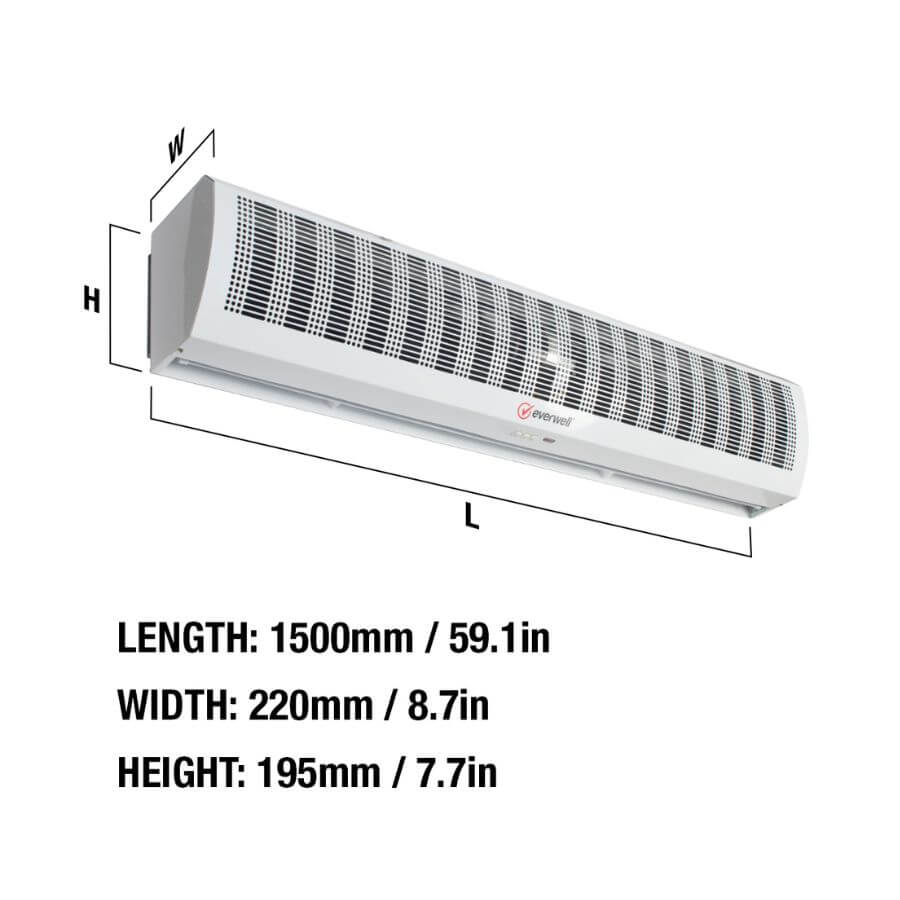

| Net Dimension (W*H*D) | 59 x 9 x 7.6 in 1500 x 220 x 195 mm |
Net | 43.87 lb 19.90 kg |
||||||||||||||||||||||||||||||||||||||||
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |
| LOADING x CONTAINER | 40HQ Floor Loaded |
| Sets | – Pcs |
|
|
Indoor Exploded View |
|
|
