Description
Why Choose R-454B?
R-454B is the latest in refrigerant technology, delivering the ideal balance of performance, safety, and sustainability. As one of the most environmentally responsible options available, it operates at lower pressures and cooler temperatures, reducing strain on your HVAC system and extending its lifespan. Choose R-454B for high efficiency and long-term peace of mind, without compromise.
Top-Discharge Condensing Unit Features:
-
- Pre-charged with R-454b refrigerant
- Top-discharge design for optimal airflow
- All-copper coil with GoldFin corrosion-resistant coating
- High-performance scroll compressor
- Heavy-duty painted galvanized steel cabinet & base pan
- Louvered grille guard protects the coil without restricting airflow
- Noiseless operation – as low as 65 dB
- Easy 24V control integration
- Easy access service panel for technician convenience
- AHRI certified & ETL Listed for safety and performance compliance
For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:
| CAC – AHC – FAHC Series | ||
| Condensing Unit | Air Handler | Front Return |
| CAC3014CA15 | AHC3614BA15 | FAHC3614BA15 |
| TECHNICAL SPECIFICATIONS | |
| Condensing Unit | |
| SKU | CAC3014CA15 |
| BTU | 28,000 |
| Ton | 2.5 |
| Power Supply | 208~230V/1Ph/60Hz |

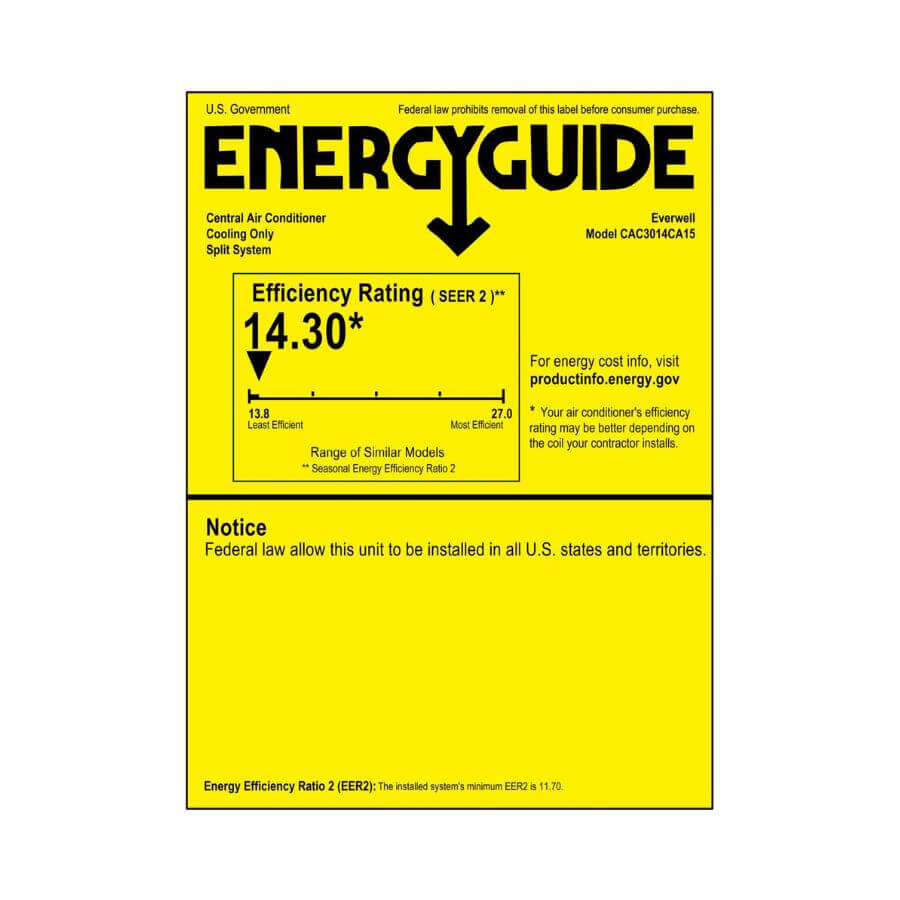

| SEER2 | 14.3 |
| Heat Pump | No |
| Refrigerant Gas | R454B |
| Compressor Brand | LG |
| Compressor Type | Scroll |
| DIMENSIONS | CAC3014CA15 | ||
| Net Dimension (W*H*D) | 23-3/5 x 23-3/5 x 25 in
600 x 600 x 635 mm |
||
| Packing Dimension (W*H*D) | 25 x 25 x 26-1/5 in
635 x 635 x 665 mm |
||
| WEIGHT | |||
| Net | 137 lb
63 kg |
||
| Packing | 144 lb
65.5 kg |
||
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |
| CAC3014CA15 | |
| LOADING x CONTAINER | 40HQ Floor Loaded |
| Sets | 216 Pcs |
|
|
|
|
|
Outdoor Exploded View |
|
AHC |
FACH |
|
Installation & Operation Manual Condensing Unit |
Condensing Unit |
Disclaimer: Specifications are subject to change without notice. Everwell Parts, Inc. is not liable for errors or changes from the manufacturer. Verify all details before installation.
