Description

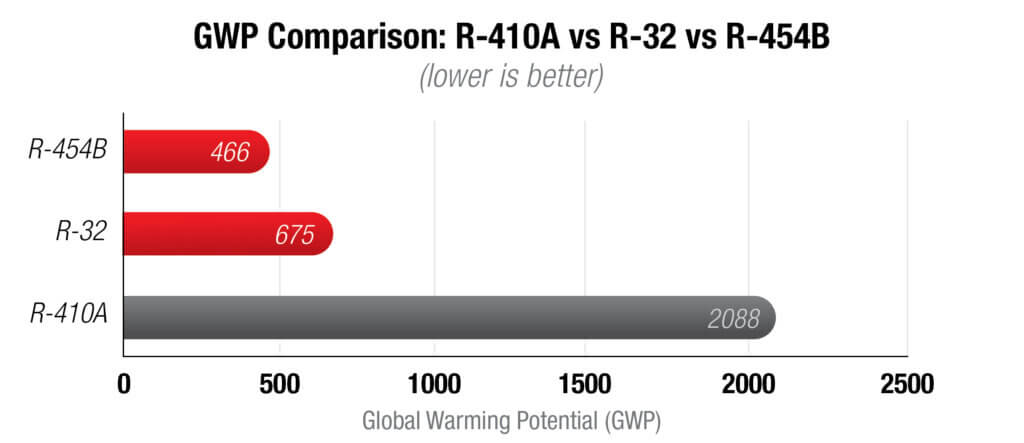

Why Choose R-454B?
R-454B is the latest in refrigerant technology, delivering the ideal balance of performance, safety, and sustainability. As one of the most environmentally responsible options available, it operates at lower pressures and cooler temperatures, reducing strain on your HVAC system and extending its lifespan. Choose R-454B for high efficiency and long-term peace of mind, without compromise.
Air Handler Unit Features:
-
- A2L Safe: Refrigerant Sensor alarms the system if it detects a leak by turning off its operation and activating high speed fan to clear vents
- Flexible installation: Upflow, Downflow, or Horizontal
- Durable all-copper coils for long-term performance
- Compatible with Cooling and Heat Pump Systems
- Multi-speed ECM motor helps maximize energy savings (select models)
- Fully insulated, powder-coated cabinet made from galvanized steel for quiet operation
- Corrosion-resistant finish for long-lasting durability
- Easy 24V control integration
- Built-in filter rack for easy maintenance
- AHRI Certified & ETL Listed for safety and performance
- Optional Electric Heater compatibility from 5-20kW
- Optional float switch compatibility
For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:
| CAC – AHC Series | |
| Condensing Unit | Air Handler |
| CAC1814CA15 / CAC2414CA15
CAC1814HA15 / CAC2414HA15 |
AHC2414BA15 |
If you are interested in enhancing its heating capacity, you can acquire a compatible Electric Heat Kit accessory such as the ones bellow:
| Field Installed Electric Heat Kits (optional) | ||
| Part No. | kW | AHU Size |
| WTM0502BE | 5 | 18k-36k |
| WTM0802BE | 7.5 | 18k-36k |
| WTM1002BE | 10 | 24k-36k |
| We strongly recommend consulting with a certified HVAC/R technician before purchasing and/or installing an Electric Heat Kit on your HVAC/R system. | ||
| TECHNICAL SPECIFICATIONS | |||
| Air Handler | |||
| SKU | AHC2414BA15 | ||
| BTU | 22,000 | ||
| Ton | 1.5–2 | ||
| Power Supply |
208~230V/1Ph/60Hz
|
||
| Heat Pump | Yes | ||
| Refrigerant Gas | R454B | ||
| DIMENSIONS | AHC2414BA15 | ||
| Net Dimension (W*H*D) | 19-2/3 x 22 x 45-3/4 in
500 x 560 x 1162 mm |
||
| Packing Dimension (W*H*D) | 22-5/6 x 25-3/5 x 47-5/8 in
580 x 650 x 1210 mm |
||
| WEIGHT | |||
| Net | 128 lb
58 kg |
||
| Packing | 139 lb
63 kg |
||
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |||
| AHC2414BA15 | |||
| LOADING x CONTAINER | 40HQ Floor Loaded | ||
| Sets | 144 Pcs | ||
|
|
|
|
|
Indoor Exploded View |
|
CAC1814CA15 |
CAC2414CA15 |
|
Air Handler |
|
Disclaimer: Specifications are subject to change without notice. Everwell Parts, Inc. is not liable for errors or changes from the manufacturer. Verify all details before installation.
